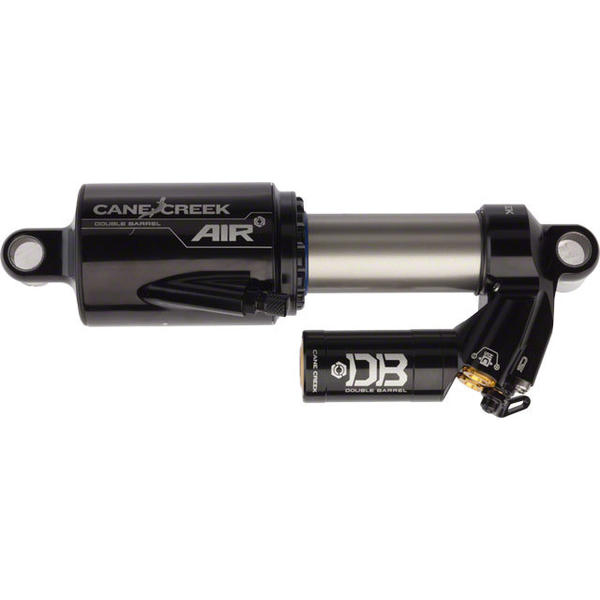

Cane Creek DBair CS Rear Shock
No one knows your ride better than you. The DBAIR was built upon the Double Barrel legacy to become the first air-sprung rear shock featuring Twin Tube technology and 4-way independent adjustability combined with an unrivaled level of quality. The DBAIR enables custom, rider-tuned damping performance, optimizing every bike for every rider.
Cane Creek’s all new CS is the most innovative climbing feature available. Traditional climbing modes only address half of climbing dynamics, requiring the rider’s body to respond to the rest. Double Barrel CS provides climbing-specific damping in both compression and rebound. Keeping suspension fully active while you climb results in better connection to the trail and increased efficiency without annoying pedal-bob. When you’re ready to descend, it’s all Double Barrel. After all, what goes up MUST go down…
DOUBLE BARREL TWIN TUBE TECHNOLOGY
Exclusive Twin Tube Technology circulates oil continuously through the damping valving to achieve highly controllable, independent damping for both compression and rebound strokes. This unique design moves oil through externally adjustable valving instead of the main piston, allowing for superior tunability and eliminating the need for internal valving changes to achieve proper shock setup.
CLIMBING SWITCH TECHNOLOGY
CS is the most innovative climbing feature available. This proprietary climbing feature (patent-pending) for Double Barrel shocks alters the entire low frequency dynamic response of the shock to specifically address the demands of ascending on a bicycle.
- ~509 grams (weight varies by size)
- Twin-tube independent compression and rebound in two high-speed and four low-speed damping circuits
- 4-way independent adjustment:
- High speed compression
- Low speed compression
- High speed rebound
- Low speed rebound
- Air spring rate
- Aluminum 7075
- Anodized and laser-etched
- Norglide bushing 1/2" Universal Axle
- Standard (All Lengths), Extra Volume (200, 216, 222, 240)
|Santa Cruz Bronson 2014 / 200 x 57mm||840226123745||BAD1108||210000005164|
